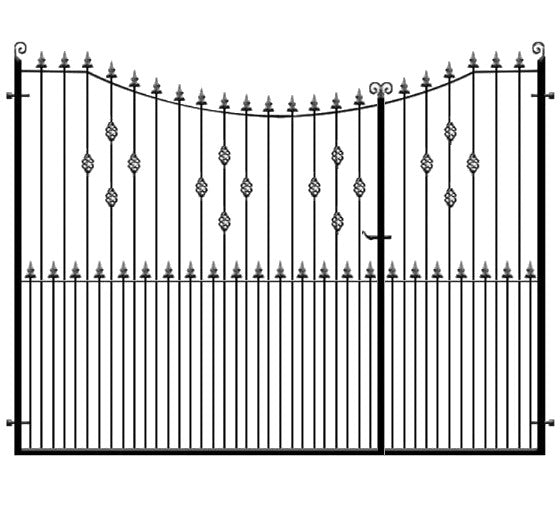

Knightsbridge 3/4 Split Driveway Gate from

    All prices include VAT

    Gates and Fences UK
    Back to 3/4 Split Gates

      • Manufactured by hand in the UK by skilled craftsmen using the finest materials to provide ultimate durability and quality. This design is constructed using our Premium Frame, which includes chunkier 40mm x 40mm side and bottom rail and thicker 16mm diameter infill bars resulting in a much sturdier and higher quality appearance gate. All of our gates come complete with a 10 year workmanship guarantee, adjustable hinges, latch, 2 x drop bolts and all can be fully galvanized which will add a 25 year rust protection, with an option of powder coating to black or any RAL colour.

        See how this gate style will look on your property - use our Gate Visualiser.

        Width of Gate: Taken as if both sides were touching each other. Select from the drop down menu above for each gate leaf width. If you are measuring a gap between existing posts/ pillars, we recommend reducing the opening size by 6" (150mm) to allow for hinge/ pins and centre clearance. Gate can be made to any width.

        Height of Gate: Taken to the highest point of each gate. We recommend allowing a 50mm (2") clearance between the bottom edge of gate and driveway (as long as the drive is level). If you require a more exact height, please contact us to order.

        Gate Feature Options: Add style to your gate, select feature Fleur De Lys, Ball or without.

        Gate Furniture (hinges etc): 4 x adjustable hinges, hinge pins, latch and drop bolts included with each gate. As standard, the position of the hinge will be 6" (150mm) the bottom edge of gate and 6" (150mm) top edge of gate. If you require these to be different (if for example you already have pins set into a post/ pillar), please call us.

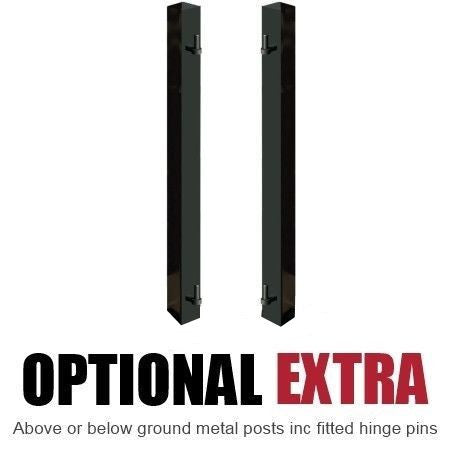

        Metal Gate Posts: 5" x 5" (120mm x 120mm). Supplied to allow the posts to sit in the ground to a depth of 2ft (600mm). The post will arrive cut to size (therefore, if you selected a gate height of 6ft 6", the post length will be 8ft 6"). As standard, the posts are galvanised (unless you select powder coating for the gate), hinge pins will be welded on ready and feature post cap fitted.

        Size of Gate not listed? No problem, call us with your exact size.

        Why choose Evador

        Hand crafted gates individually made here in the UK

        Can be made to ANY width and height

        We construct gates to a very high standard, using the correct size metal for each gate depending on the style and size. This gives you a very strong gate which will last for many years

        Adjustable hinges, 2 x drop bolts and ring latch are included with your gate

        10 Year workmanship guarantee against welds

        One of UK's largest gate manufacturers approved by Trading Standards

        Delivered straight to your door


      • Working out the required size is an important yet simple task to complete but we are always at hand to assist you through the process (0800 6124 96)

        Calculating Driveway Gate width between existing Pillars or Posts:

        Take three measurements, top, middle and bottom (as below).

        How to measure for driveway gate

        Take the shortest of the three measurements and reduce by 150mm (or 6"). This allows for the hinge (inc pins) and centre opening gap. The final figure will be the actual width of gate required.

        For example: Top: 3m 455mm | Middle: 3m 450mm | Bottom: 3m 445mm - shortest measurement would be 3m 445mm - reduce by 150mm = Actual Gate Width of: 3m 295mm

        Download PDF Measurement Guide

      • Specifications:

        As standard, the frame size and bar diameter are used as below. If preferred, we can increase the frame size (or add box frame etc) on request. To do so, please call us.

        Hanging Style 40mm x 40mm
        Bottom Rail 40mm x 40mm
        Top, Middle and Closing Rail 40mm x 10mm Flat
        Main Infill Bars 16mm Diameter
        Bottom Infill Bars (Dog Bars) 12mm Diameter

UK Delivery (mainland UK only - deliveries to Isle of Wight etc can be arranged but may occur charges) direct to your door...

We strive to delivery all products in the quickest time possible from point of order. Due to all gates and railings being custom made for each customer, we do ask to allow a period of 40 days for delivery, however, over 95% will be delivered within 30 working days. For more accurate delivery times, please call us.


Express Service:

Need to get your product quicker. We do offer an express service for an additional £99 - Please call on 0800 152 2106.

Delivered to your Door:

For larger items a two man delivery team maybe used. Smaller gates will be a one man drop.


To keep delivery charges down, as standard we are only able to provide a delivery day (between 09:00 and 18:00). Pre 10:30am delivery can be arranged but an additional charge will be added.
